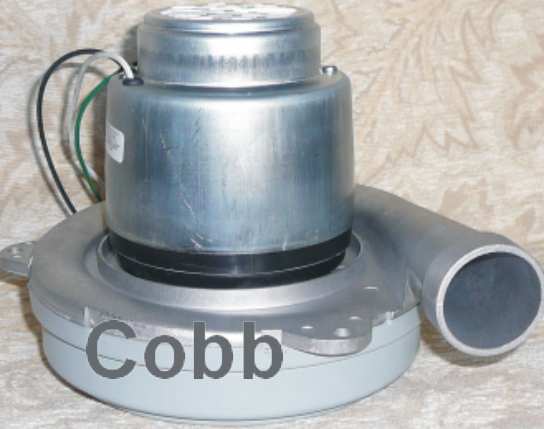

LMB5A Vac Motor 148" 8.4" diam. Tangential Discharge

LMB5A Vac Motor 148" 8.4" diam. Tangential Discharge, Note - No Thermal Cutout for use in extractors
148" Water Lift, 142 CFM, 673 Air Watts w/new Black Epoxy Fans
The Highest Efficiency Design available for Extractors
Only Draws 12.5 amps in typical extractor
Long Life Brush Design (1500 hours) with Improved Bearing Moisture Protection
Overall Height 7.3" x 9.25" mounting circle
Fits 7.2" Vac motor Bolt Pattern
U.L. Recognized Motor System

8.4" Performance Charts - Lift & CFM

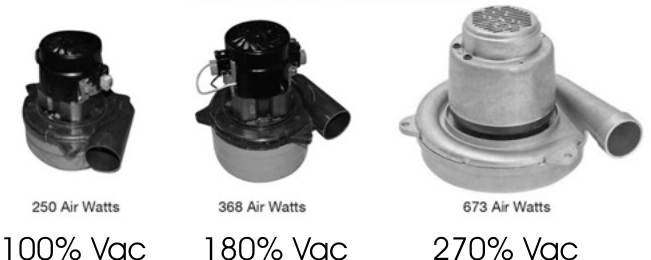

Vac Motor Comparison

Curved Brush & Bearing Seal Info

Associated Part Required - Vac Gasket {Hand tighten only}

Associated Part Link - Vac Mounting Plate

Associated Part Link - Vac Motor Brush
