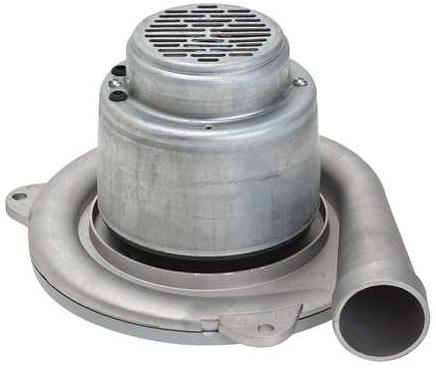

LZ Vac Motor 120" 8.4" Tangential Discharge No Inlet Tube

LZ Vac Motor 120" 8.4" diam. Tangential Discharge, Note - No Thermal Cutout for use in extractors
170 CFM, 120" Water Lift, 715 Air Watts w/new Black Epoxy Fans
The Highest Efficiency Design available for Extractors
Only Draws 13 amps in typical extractor
Long Life Brush Design (1500 hours) with Improved Bearing Moisture Protection
Overall Height 6.5" x 9.25" mounting circle
Fits 7.2" Vac motor Bolt Pattern
U.L. Recognized Motor System

8.4" Performance Charts - Lift & CFM

Vac Motor Comparison

Curved Brush & Bearing Seal Info

Associated Part Required - Vac Gasket

Associated Part Link - Vac Mounting Adapter

Associated Part Link - Vac Motor Brush
